Sansui model BA-5000 power amplifier in excellent condition. Rated at 300 watts RMS per channel into 8, 4 or 2 ohms (that's right 300 watts into two ohms!). Can also be run in mono delivering 600 watts RMS into 4, 8 or 16 ohms. And there's more, 25V and 70V outputs for commercial sound distribution.
From Sansui:
The Sansui BA-5000 is a stereo/mono power amplifier delivering a per channel power output of 300 watts, minimum RMS, both channels driven into 8 ohms over a 20 to 20,000Hz bandwidth with no more than 0.1 % total harmonic distortion.
A high-efficiency output transformer allows the BA-5000 to deliver full rated output at loads of 8, 4 or 2 ohms for 2-channel ultra-stable operation; a full 600 watts in mono. The output transformer also functions as a bandpass filter cutting subsonic signals to protect speaker cones.
Features include:
Temperature sensored cooling fan.
Three protection circuits : ASO (area of safe operation) detection circuit monitors and limits current flow in power transformers ; thermistor self-restoring temperature detection circuit; overload detection circuit with quick-acting fuses.

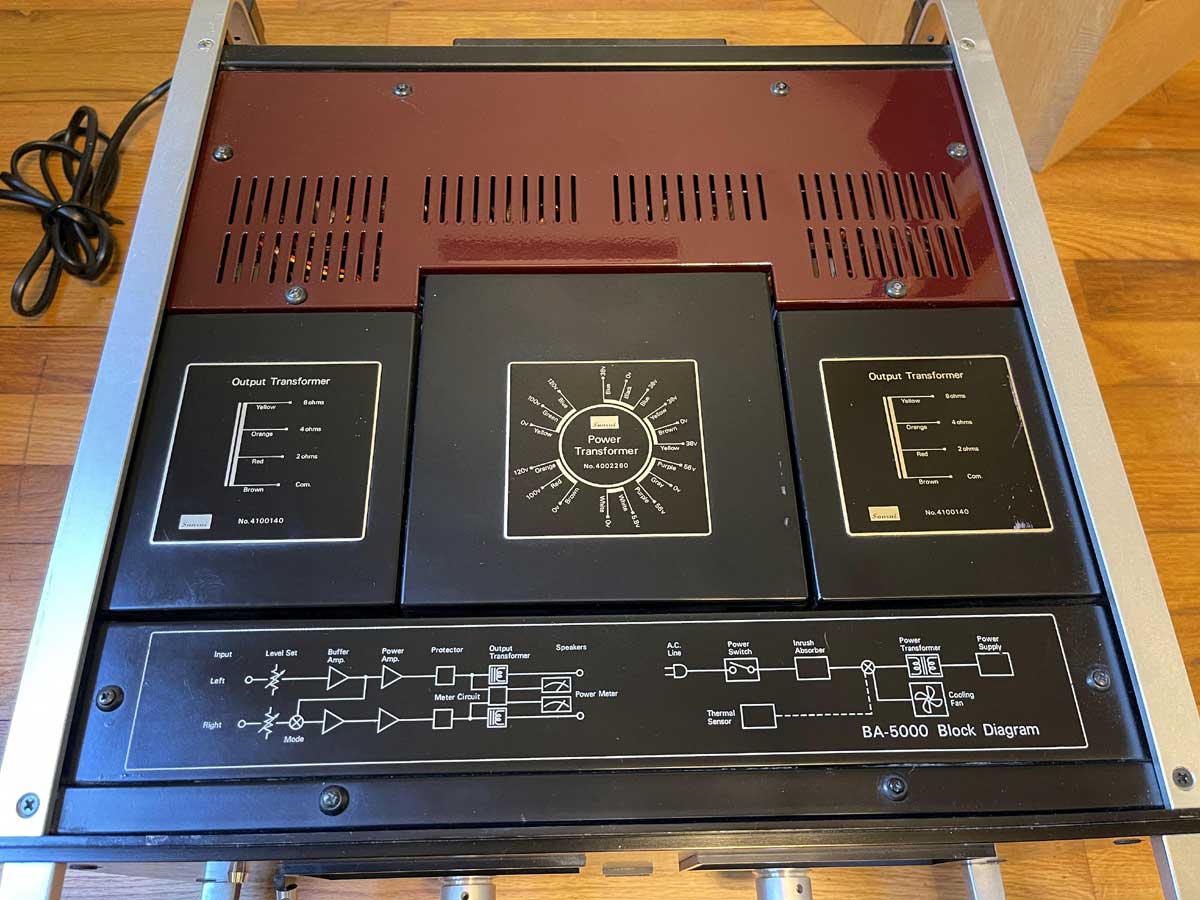

High-accuracy meters, with logarithmically compressed scale covering 0.01 to 300 watts and decibel scale ; precise, positive controls plus block diagram of instrument interior printed on cover.
 |
Controls:
Left Channel Input Levelclassicaudio.com
Right Channel Input Level
Switches:
Powerclassicaudio.com
Indicators:
Left Channel Power
Right Channel Power
Power/Protector LEDclassicaudio.com
Rear Panel:
Input (L, R)classicaudio.com
Speakers Out: 2, 4, 8 ohms
2-CH/Mono Switchclassica
 |
$5000.00
 |
