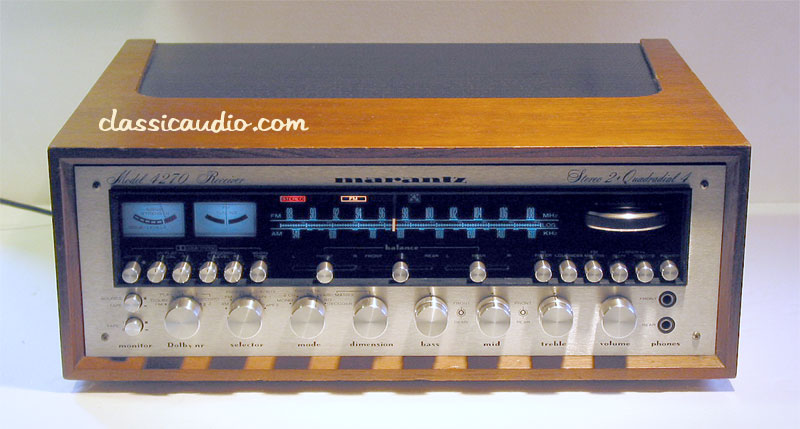

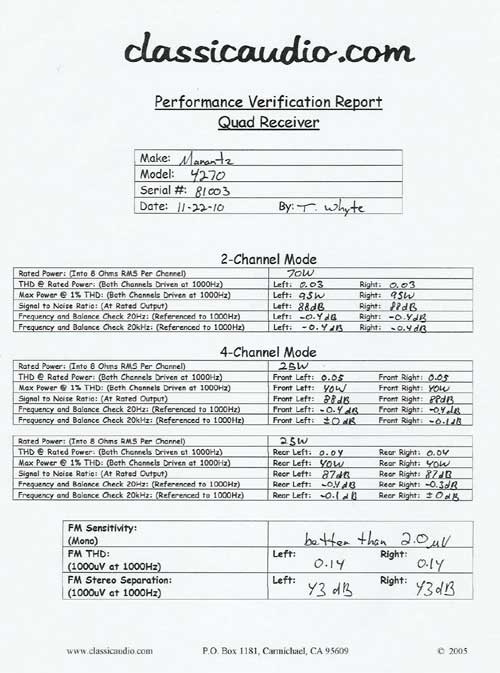

Marantz model 4270 quad reciever in excellent condition with optional wood cabinet in very good condition. Rated at 70 watts RMS per channel in 2-channel mode and 25 watts RMS per channel in 4-channel mode. This unit has been serviced and fully tested. Our original Performance Verification Report and a copy of the owner's manual are included.

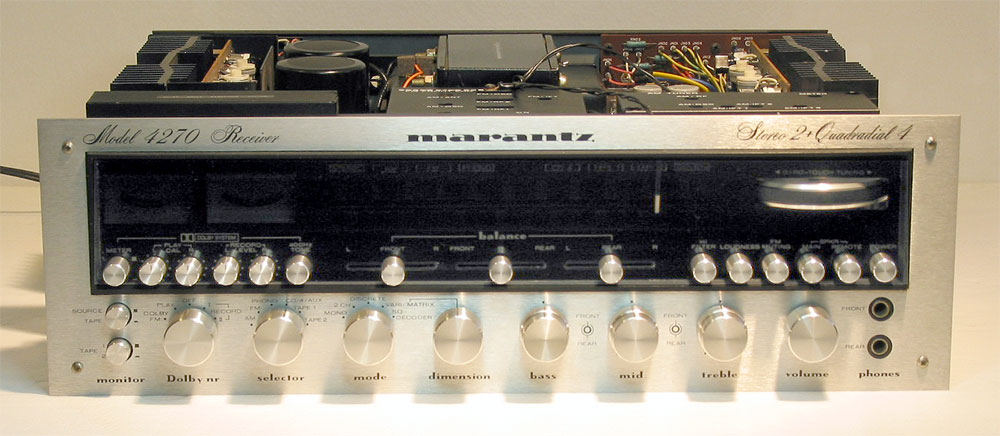

The inner metal cover is not present. It was not uncommon for the inner cover to be removed on higher power models when the wood cabinet was added. This allows for better ventilation.

Controls:

Dolby Play Cal Left
Dolby Play Cal Rightclassicaudio.com
Dolby Record Cal Left
Dolby Record Cal Right
Dolby: FM Dolby, Play, Off, Record 1, Record 2.
Selector: AM, FM, Phono, Aux/CD4, Tape 1, Tape 2.classicaudio.com
Mode: Mono, 2-CH, Discrete, Vari-Matrix, SQ-Decoder
Dimension: Vari-Matrix Mode Only
Bass: Independent Front, Rear
Mid: Independent Front, Rearclassicaudio.com
Treble: Independent Front, Rear
Volume
Balance: Front, Left Right (Slider)
Balance: Front, Rear (Slider)
Balance: Rear, Left Right (Slider)classicaudio.com

Switches:

Monitor: Source/Tape
Monitor: Tape 1/2classicaudio.com
Meter: Dolby Level/Signal Strength
400 Hz Tone
Hi Filterclassicaudio.com
Loudness
FM Muting
Spkr Main
Spkr Remote
Powerclassicaudio.com

Jacks:

Headphones Front
Headphones Rear

Indicators:

Dolby Level/Signal Strength Meter
Tuning Meterclassicaudio.com
STEREO
AM
FM
PHONO
4-CHclassicaudio.com
AUX
TAPE 1
TAPE 2
DOLBYclassicaudio.com

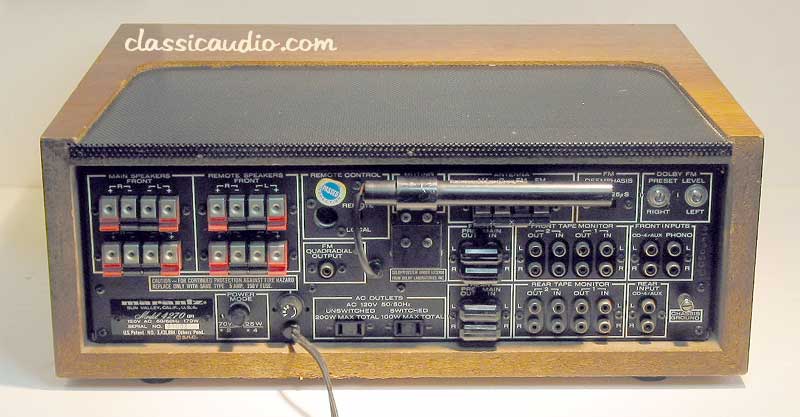

Rear Panel:

AC Outlet Unswitched
AC Outlet Switchedclassicaudio.com
FM Quadradial Output
Main In Left, Right, Front, Rear
Pre Out Left, Right, Front, Rear
Tape Monitor 2 Out (L, R, F, R)classicaudio.com
Tape Monitor 2 In (L, R, F, R)
Tape Monitor 1 Out (L, R, F, R)
Tape Monitor 1 In (L, R, F, R)
Aux Input (L, R, F, R)
Phono Input (L, R)
Remote Control
Power Mode: 70W X2/25W X4classicaudio.

Shipping Weight 57 lbs.

$499.95



ClassicAudio.com
Phone 916-488-6016 or
Toll Free: 1-888-892-8106 enter "1027"
To send email click here.



Buyer to pay item cost plus actual shipping charges from 95609.
We accept credit cards or money orders, click here for more information.
Shipping to U.S. only. We PRO PACK!
This item includes an unconditional 30 day money back guarantee!
