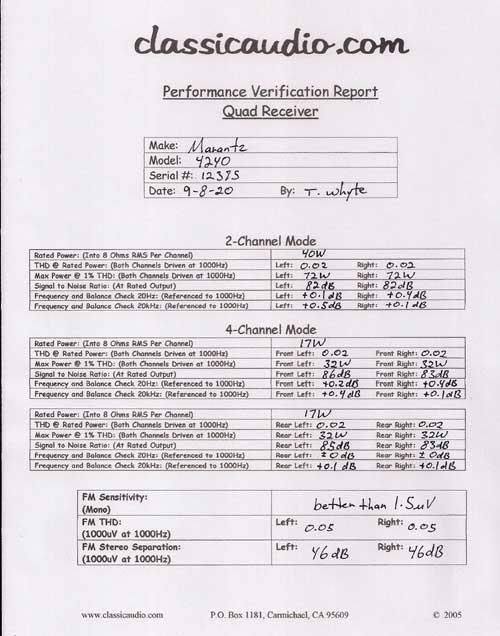

Marantz model 4240 quad reciever in excellent condition. Rated at 40 watts RMS per channel in 2-channel mode and 17 watts RMS per channel in 4-channel mode. This unit has been serviced and fully tested. Performance Verification Report included.
(Tech's Note: Marantz is famous for understating their power ratings. The 4240 is a spectacular example. Following the restoration we clocked this 4240 at 72 watts per channel in 2 channel mode and over 30 watts per channel in 4 channel mode. Just to be sure, the test was done a couple of times using a couple of methods. It's accurate!)
From Marantz:
The Marantz Model 4240 is a high quality stereo + quadradial receiver developed by Marantz, a name famous for quality in the audio component industry.
The model 4240 incorporates Marantz's exclusive Vari-matrix circuit which simulates 4-channel sound from normal 2-channel stereo programs, and is capable or reproducing 4-channel sound from any matrix encoded source.
The 4240 will also reproduce any discrete 4-channel program as well as regular stereo and monaural programs.
An optional plug-in decoder adapts the 4240 for any specific matrix system such as Columbias SQ.
 |
Controls:
Dolby Play Cal Left
Dolby Play Cal Rightclassicaudio.com
Dolby Record Cal Left
Dolby Record Cal Right
Dolby: FM Dolby, Play, Off, Record 1, Record 2.
Selector: AM, FM, Phono, Aux/CD4, Tape 1, Tape 2.
Mode: Mono, 2-CH, Discrete, Vari-Matrix, SQ-Decoder
Dimension: Vari-Matrix Mode Onlyclassicaudio.com
Bass: Independent Front, Rear
Treble: Independent Front, Rear
Volume
Balance: Front, Left Right (Slider)
Balance: Front, Rear (Slider)classicaudio.com
Balance: Rear, Left Right (Slider)Switches:
Monitor: Source/Tape
Monitor: Tape 1/2classicaudio.com
Meter: Dolby Level/Signal Strength
400 Hz Tone
Hi Filterclassicaudio.com
Loudness
FM Muting
Spkr Main
Spkr Remote
Powerclassicaudio.comJacks:
Headphones Front
Headphones RearIndicators:
Dolby Level/Signal Strength Meter
Tuning Meterclassicaudio.com
STEREO
AM
FM
PHONO
4-CHclassicaudio.com
AUX
TAPE 1
TAPE 2
DOLBYclassicaudio.com
Rear Panel:
AC Outlet Unswitched
AC Outlet Switched
FM Quadradial Outputclassicaudio.com
Tape Monitor 2 Out (L, R, F, R)
Tape Monitor 2 In (L, R, F, R)
Tape Monitor 1 Out (L, R, F, R)
Tape Monitor 1 In (L, R, F, R)classicaudio.com
Aux Input (L, R, F, R)
Phono Input (L, R)
Remote Control
Power Mode: 40W X2/17W X4classicaudio.comShipping Weight 50 lbs.
 |
$1300.00
 |
ClassicAudio.com
Phone 916-488-6016 or
Send email click here.
 |
Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!
This item includes our 60 day / 2 year limited warranty!
Read what our customers say about us!
Meter, Dial and Stereo Lamps are now LEDs.
4240 Power Supply Refurb:

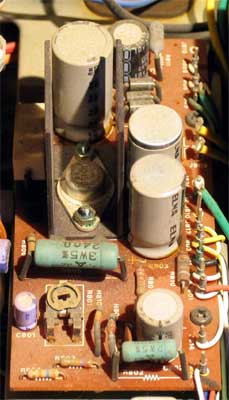

BEFORE

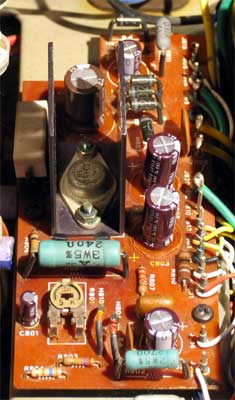

AFTER
Also Refurbished:
Left Channel Front Amp Section
Right Channel Front Amp Section
Left Channel Rear Amp Section
Right Channel Rear Amp Section

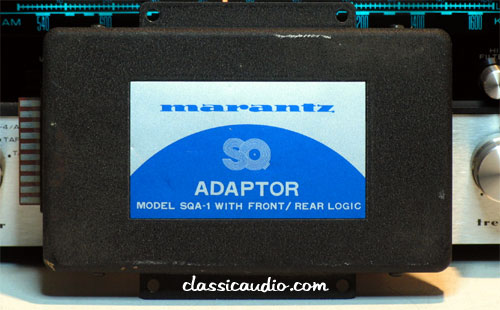

The model SQA-1 SQ Decoder Adaptor is available at an additonal charge.
