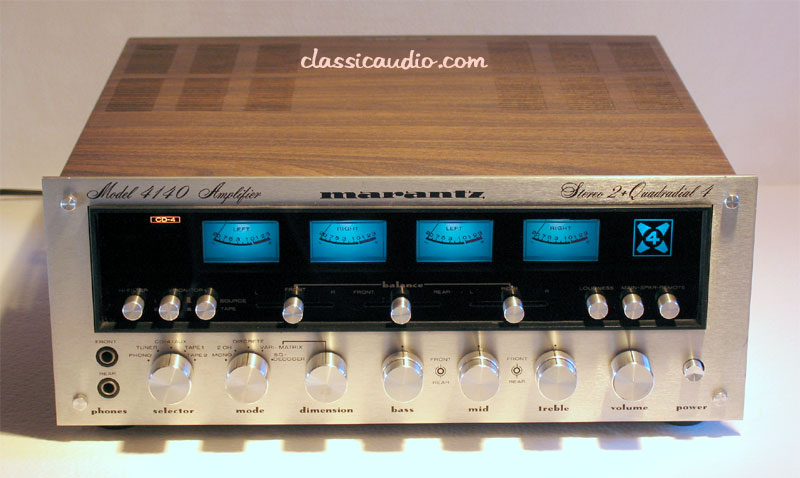

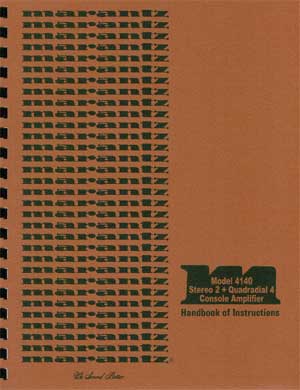

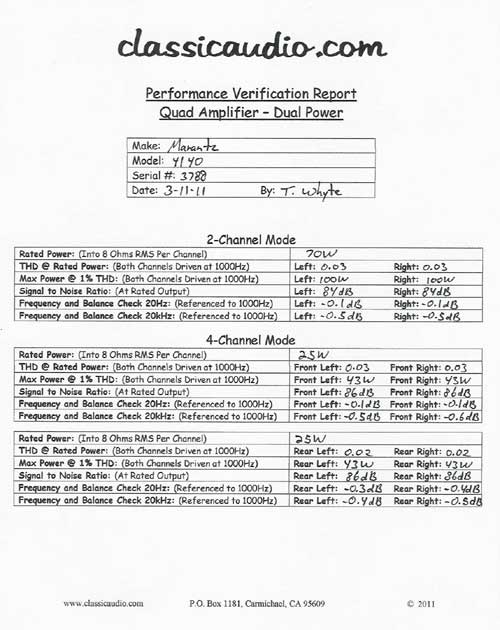

Marantz model 4140 quad integrated amplifier in excellent condition. Includes optional SQA-2B SQ decoder. Rated at 70 watts RMS per channel into 8 ohms in 2 channel mode and 25 watts RMS per channel in 4 channel mode. This unit has been serviced and fully tested. Our original Performance Verification Report, and copy of the owner's manual are included.

From the owner's manual:

The Model 4140 incorporates Marantz exclusive vari-matrix circuit which simulates 4-channel sound from normal 2-channel stereo programs, and is capable of reproducing 4-channel sound from any matrix encoded source.

The 4140 will also reproduce any discrete 4-channel program as well as regular stereo and monaural programs.

An optional plug-in decoder adapts the 4140 for any specific matrix system, such as Columbia's SQ.

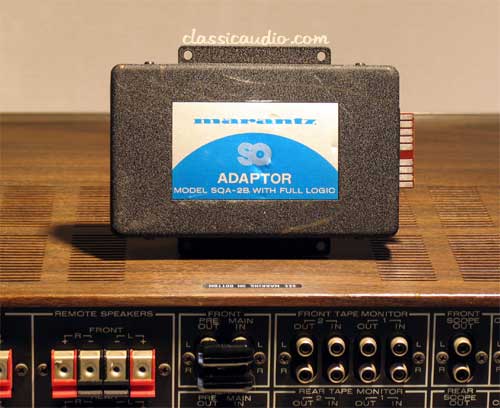

The SQA-2B:

The Marantz model SQA-2B 4-channel decoder is specifically designed for plug-in use with those Marantz audio components which feature the appropriate under-chassis recess (pocket) and multi connector.

The SQA-2B contains a CBS-SQ system decoding matrix, a phase shifter, and a full logic circuit to enhance channel separation.

When equipped with the module, a 4-channel component offers full SQ system decoding capability.



Controls:

Selector: Phono, Tuner, Aux/CD4, Tape 1, Tape 2.
Mode: Mono, 2-CH, Discrete, Vari-Matrix, SQ-Decoder
Dimension: Vari-Matrix Mode Onlyclassicaudio.com
Bass: Independent Front, Rear
Mid: Independent Front, Rear
Treble: Independent Front, Rear
Volumeclassicaudio.com
Balance: Front, Left Right (Slider)
Balance: Front, Rear (Slider)
Balance: Rear, Left Right (Slider)classicaudio.com

Switches:

Hi Filterclassicaudio.com
Monitor: Source/Tape
Monitor: Tape 1/2
Loudness
Spkr Mainclassicaudio.com
Spkr Remote
Power

Jacks:

Headphones Front
Headphones Rear

Indicators:

LEVEL METER (dB) LEFT FRONT
LEVEL METER (dB) RIGHT FRONT
LEVEL METER (dB) LEFT REARclassicaudio.com
LEVEL METER (dB) RIGHT REAR
PHONO
TUNER
2-CH
4-CH
AUXclassicaudio.com
TAPE 1
TAPE 2

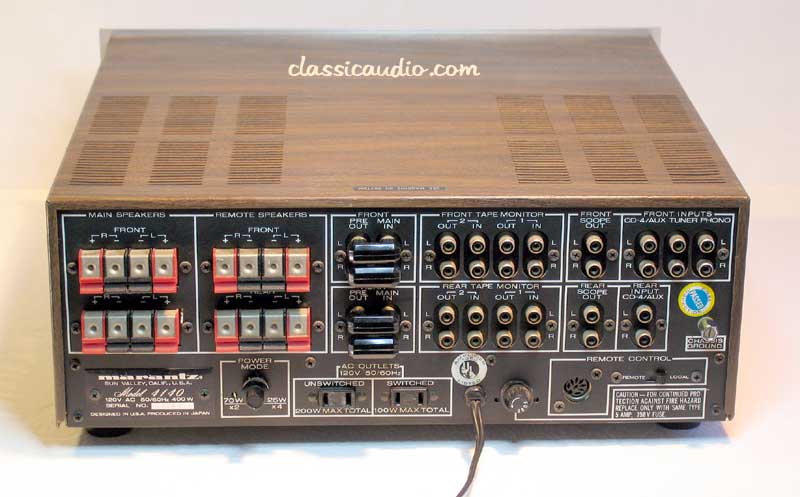

Rear Panel:

AC Outlet Unswitched
AC Outlet Switched
Pre-Out (L, R, F, R)classicaudio.com
Main-In (L, R, F, R)
Scope Out (L, R, F, R)
Tape Monitor 2 Out (L, R, F, R)
Tape Monitor 2 In (L, R, F, R)
Tape Monitor 1 Out (L, R, F, R)
Tape Monitor 1 In (L, R, F, R)classicaudio.com
Tuner (L, R)
Aux Input (L, R, F, R)
Phono Input (L, R)
Remote Controlclassicaudio.com
Power Mode: 70W X2/25W X4

Shipping Weight: 38 Pounds



$599.95
